Banding Material & Tools
Description
Cable bands are used to attach the cable to the tubing during installation. Bands are provided using three different materials. Carbon Steel Bands are used in wells with no corrosive problems. Stainless Steel Bands are used in moderately corrosive well (with no H2S present in the well). And Monel Bands are used in corrosive environments.
Specification
| Material |
Carbon Steel, Stainless Steel, and Monel |
| Width |
0.25” - 0.75” (depend on ordered part number) |
| Thickness |
0.025” - 0.03 (depend on ordered part number) |
| Average Breaking Strength |
400 lbs - 1000 lbs (depend on ordered part number) |
| Weight |
2 lbs - 8 lbs (depend on ordered part number) |

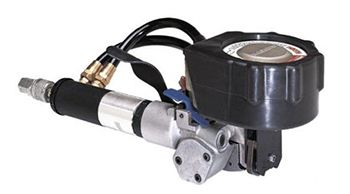

Banding Tool: Pneumatic Air Bander
Specification
| Strap size |
0.25” - 0.75” |
| Tensile |
0.015” - 0.023” |
| Weight |
11.2 lbs |
